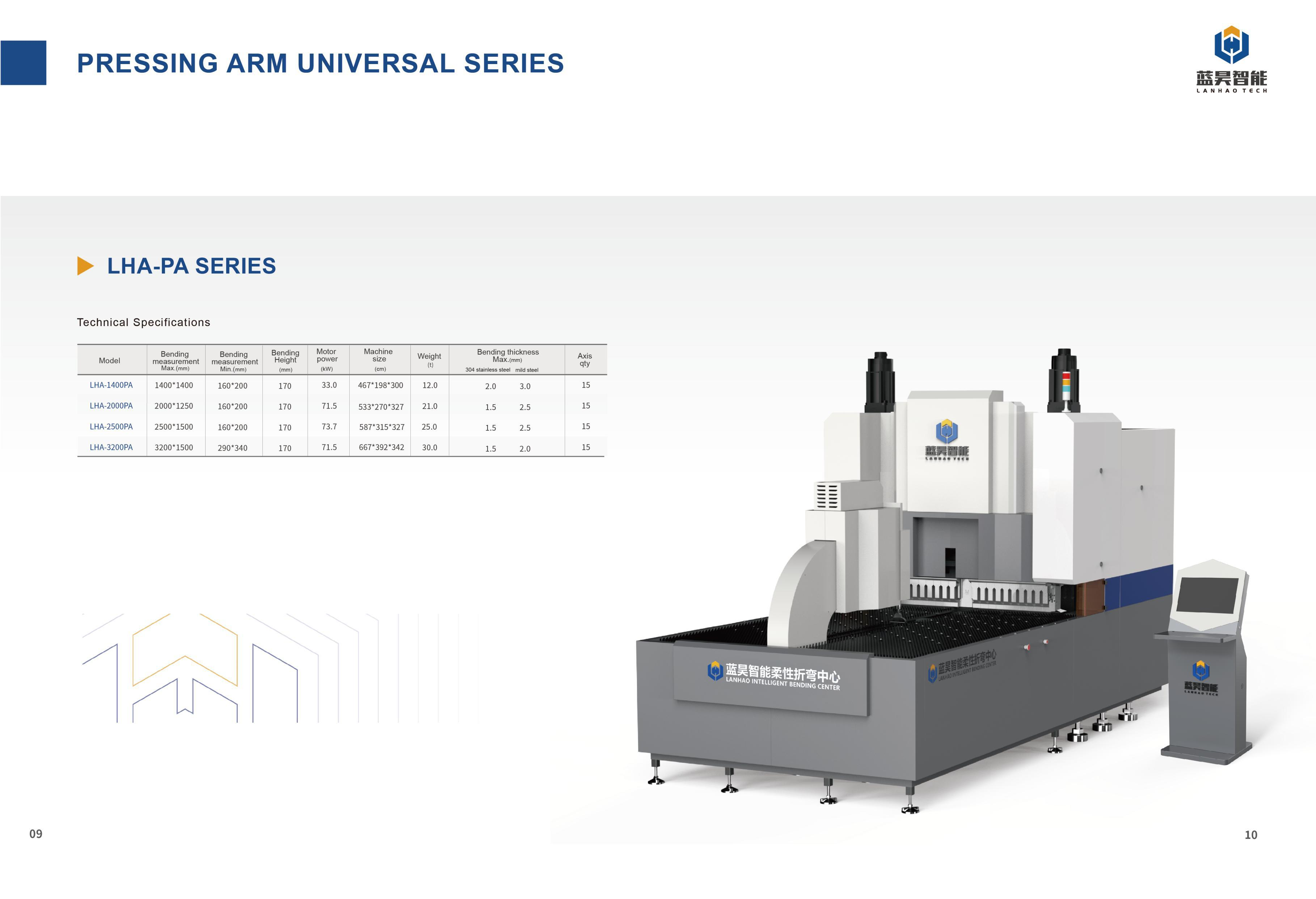

LHA-PA Series
Standard power hinge tooling designed for mesh, corrugated, hollow, flat or special-shaped panels. Avoids scooping plate or scratches with optional C-axis lifting or assistant tooling.
KEY FEATURES
Pressing Arm Feeding
Standard power hinge tooling with pressing arm feeding method ensures consistent and reliable panel positioning
Versatile Panel Types
Handles mesh, corrugated, hollow, flat or special-shaped panels with equal precision and efficiency
No Scratches
Avoids scooping plate or scratches with optional C-axis lifting or assistant tooling for delicate surfaces
15-Axis Control
Advanced 15-axis CNC control system provides precise positioning and complex bending operations
Optional Customization
C-axis lifting or assistant tooling available for specialized applications and unique requirements
High Efficiency
Optimized for high-volume production with quick setup times and minimal operator intervention
TECHNICAL SPECIFICATIONS
| Model | Bending Length (Max/Min) | Bending Height | Motor Power | Machine Size | Weight | Thickness (304/Cold Steel) | Axis Qty |
|---|---|---|---|---|---|---|---|
| LHA-1400PA | 1400×1400mm | 160×200mm | 33.0kW | 467×198×300cm | 12.0t | 2.0 / 3.0mm | 15 |
| LHA-2000PA | 2000×1250mm | 160×200mm | 71.5kW | 533×270×327cm | 21.0t | 1.5 / 2.5mm | 15 |
| LHA-2500PA | 2500×1500mm | 160×200mm | 73.7kW | 587×315×327cm | 25.0t | 1.5 / 2.5mm | 15 |
| LHA-3200PA | 3200×1500mm | 200×340mm | 71.5kW | 667×362×342cm | 30.0t | 1.5 / 2.0mm | 15 |
Additional Specifications
PRODUCT GALLERY
INTERESTED IN LHA-PA SERIES?
Contact our experts to discuss your specific requirements and get a customized solution
