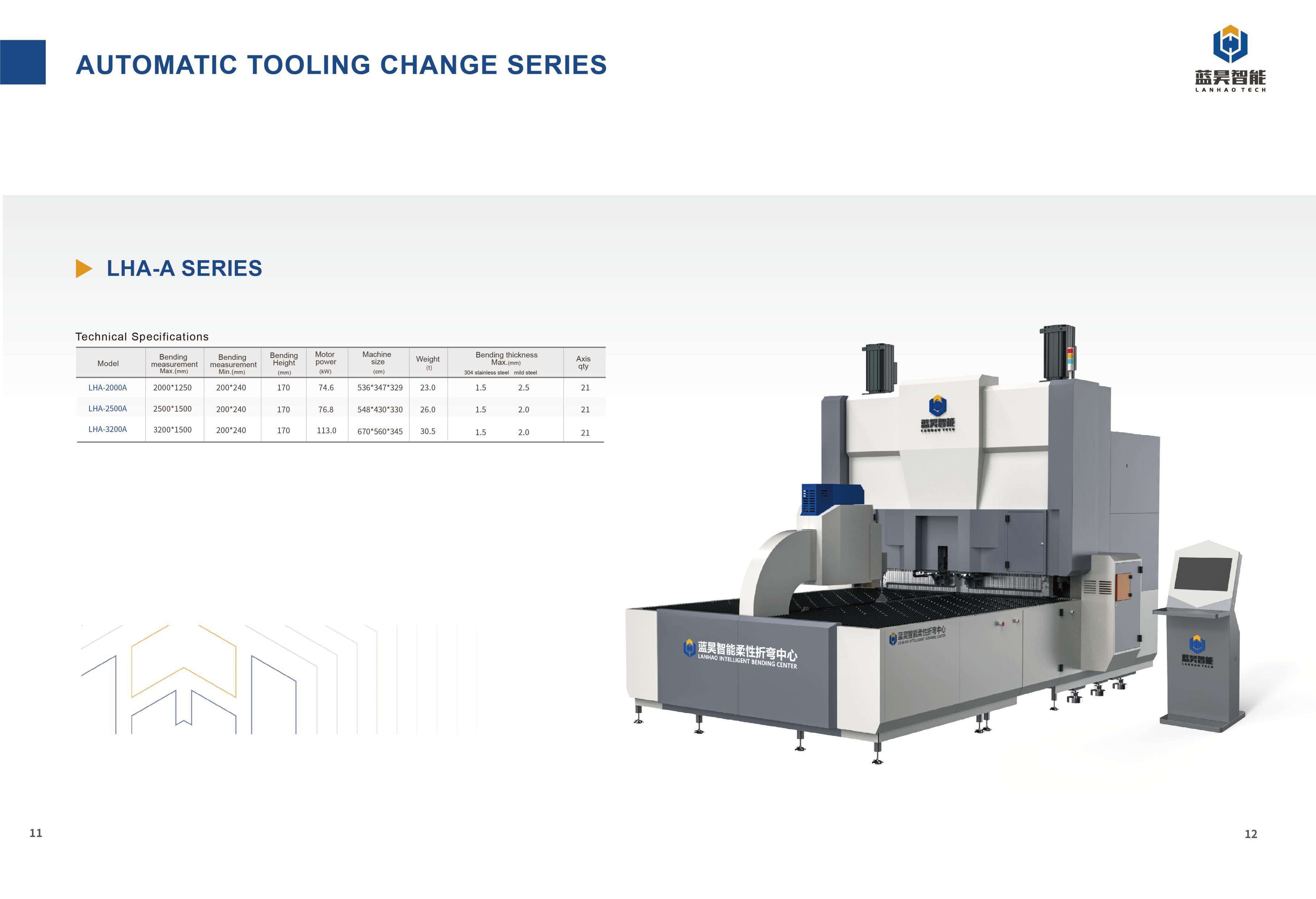

LHA-A Series
Exclusive patented automatic tooling change algorithm designed for small batch and varied types metal sheet production. Features partial bending workmanship with assistant tooling for maximum flexibility.
KEY FEATURES
Patented Algorithm
Exclusive patented automatic tooling change algorithm optimizes production efficiency for varied batch sizes
Small Batch Optimization
Specifically designed for small batch and varied types metal sheet production with quick changeover
Partial Bending
Standard partial bending workmanship with assistant tooling enables complex geometries and tight tolerances
21-Axis Control
Advanced 21-axis CNC control system provides exceptional precision and complex multi-bend operations
High Flexibility
Automatic tooling change eliminates manual intervention, reducing setup time and increasing throughput
Large Bending Height
200×240mm bending height accommodates larger and more complex panel designs with ease
TECHNICAL SPECIFICATIONS
| Model | Bending Length (Max/Min) | Bending Height | Motor Power | Machine Size | Weight | Thickness (304/Cold Steel) | Axis Qty |
|---|---|---|---|---|---|---|---|
| LHA-2000A | 2000×1250mm | 200×240mm | 74.6kW | 536×347×329cm | 23.0t | 1.5 / 2.5mm | 21 |
| LHA-2500A | 2500×1500mm | 200×240mm | 76.8kW | 545×430×330cm | 26.0t | 1.5 / 2.0mm | 21 |
| LHA-3200A | 3200×1500mm | 200×240mm | 113.0kW | 670×560×345cm | 30.5t | 1.5 / 2.0mm | 21 |
Additional Specifications
PRODUCT GALLERY
INTERESTED IN LHA-A SERIES?
Perfect for manufacturers requiring flexibility in small batch production with automatic tooling changes
